GYRHX711-1 24 bit analog-to-digital converter (ADC) module

Name: GYRHX711-1 24 bit analog-to-digital converter (ADC) module
Brand: GYRFALCON INTELLIEDGE SOLUTIONS INDIA PRIVATE LIMITED
Price: 700.0 INR
Availability: InStock

Price 700.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

About GYRHX711-1 24 bit analog-to-digital converter (ADC) module

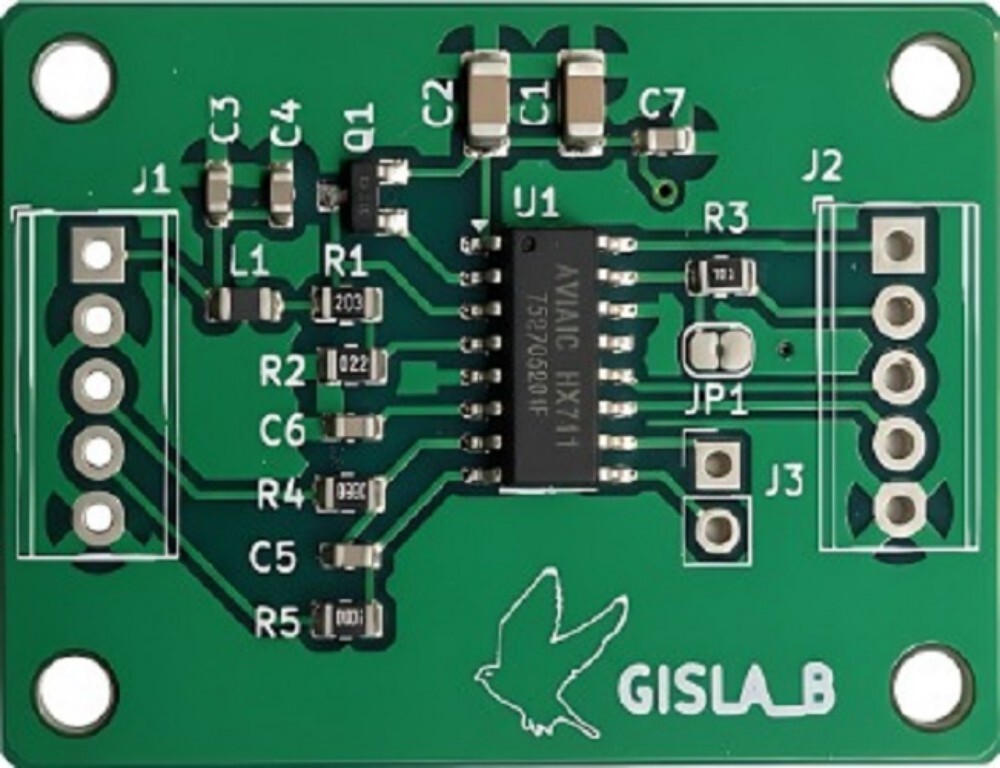

This module is a precision 24-bit analog-to-digital converter (ADC) crafted for weigh scales and industrial control applications like A/D weight pressure sensor, Pressure, Force and Flex sensor. Tailored to interface directly with bridge sensors, its input multiplexer allows selection between Channel A and B, each offering specific gains. Channel A, programmable with gains of 128 or 64, corresponds to 20mV or 40mV full-scale differential input voltage when connected to a 5V supply. Channel B features a fixed gain of 32. With a low-noise programmable gain amplifier, on-chip power supply regulator, and flexible clock input from external sources, crystals, or an on-chip oscillator, the HX711 excels in delivering precise measurements without the need for external components. The integrated power-on- reset circuitry simplifies digital interface initialization, making it an ideal choice for applications demanding accuracy, reliability, and ease of integration.

Precision Sensing for Weighing Applications

Designed for integration with load cells, the GYRHX711-1 ADC module transforms analog signals into precise 24-bit digital data, making it an excellent choice for electronic weighing systems, industrial scales, and sensor-based applications requiring fine accuracy. Calibration is necessary to maintain high performance in such demanding environments.

Flexible Integration and Configuration

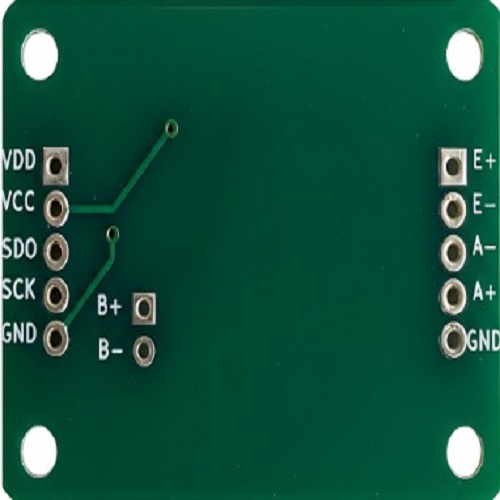

Offering standard pin header connectors and a straightforward 2-wire serial interface, the GYRHX711-1 can be effortlessly linked to microcontroller platforms. Its gain adjustment and switchable sampling rates add versatility to accommodate various sensor signals, optimizing performance and amplification as needed.

Robust Design and Compliance

Manufactured with high-quality FR-4 PCB material, the module ensures reliability across a wide temperature range (-40C to +85C). Basic onboard ESD protection safeguards against static discharge, and RoHS compliance makes it environmentally friendly for international markets.

FAQ's of GYRHX711-1 24 bit analog-to-digital converter (ADC) module:

Q: How do I connect the GYRHX711-1 ADC module to a microcontroller?

A: The GYRHX711-1 module uses standard pin header connectors and a simple 2-wire serial (clock and data) interface for communication. Simply connect the pin headers to your microcontroller's corresponding data and clock pins, along with appropriate power and ground connections (2.6V-5.5V DC).

Q: What calibration process is required for accurate measurements with this module?

A: To achieve precise results, the module should be calibrated using a known reference weight or sensor value after installation. The calibration routine typically involves reading the sensor's zero and span values and configuring these points within your code or microcontroller firmware.

Q: When should I switch between the 10SPS and 80SPS sampling rates?

A: Select 10SPS for higher noise immunity and improved measurement stability, suitable for sensitive weighing tasks. Use 80SPS for faster readings when response speed is more critical than maximum resolution, such as in dynamic weighing or rapid signal monitoring.

Q: Where can the GYRHX711-1 be used in terms of environmental conditions?

A: This module offers reliable performance in environments ranging from -40C to +85C, making it suitable for industrial, laboratory, or outdoor installations subject to varying temperatures.

Q: How does the module benefit weight scale and sensor applications?

A: With its 24-bit resolution, selectable gain (32, 64, 128), and precise differential input, the module captures minute changes in sensor signals, enabling high-precision measurements for load cells or similar sensors, improving overall accuracy and repeatability.

Q: What is the typical current consumption of the GYRHX711-1 during operation?

A: The module operates efficiently with a typical current consumption of less than 1.5mA, making it suitable for battery-powered and energy-conscious applications.
